GVM 3700 kg | GCM 8200 kg
Stage 2: The Performance Level-Up
Stage 2 of Offroad Industries' GVM program for the Ford F-150 (XLT, Lariat & Platinum) (2021–2026). “The Performance Level-Up” lifts the truck 2in, clears 275/60R20 (OEM), and re-rates it to 3700 kg GVM and 8200 kg GCM — that's approx. 1219-1224 kg of legal payload.
Who it suits: Tourers on corrugations wanting adjustable Fox damping without changing wheels.
Specifications
| Vehicle | Ford F-150 (XLT, Lariat & Platinum) · 2021–2026 |
|---|---|
| Factory rating | 3,220 kg GVM · 7,720 kg GCM · about 769 kg payload |
| Upgraded GVM | 3700 kg |
| Upgraded GCM | 8200 kg |
| Payload | approx. 1219-1224 kg |
| Lift | 2in |
| Tyres | 275/60R20 (OEM) |
| ORI part number | FRD-F150-Stage2-GVM |

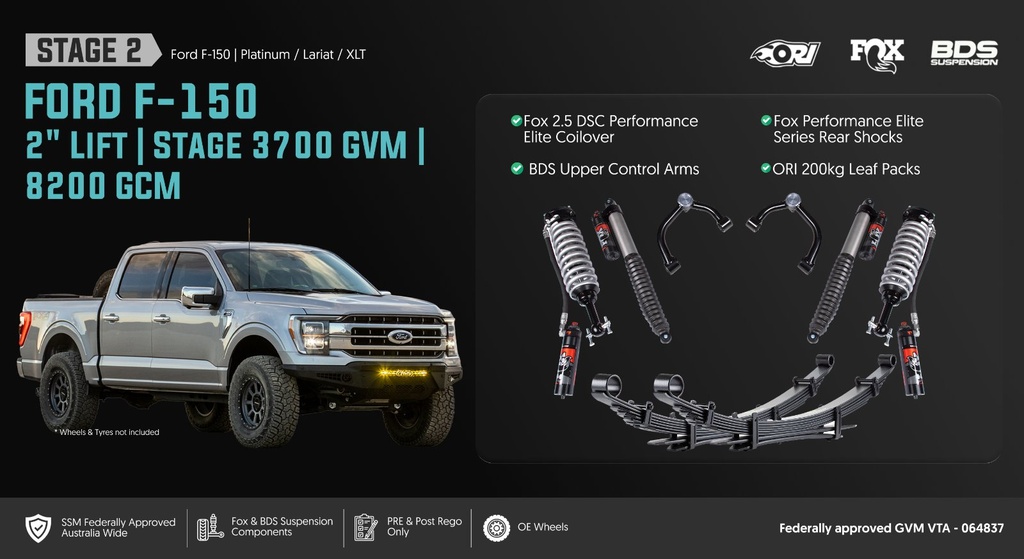

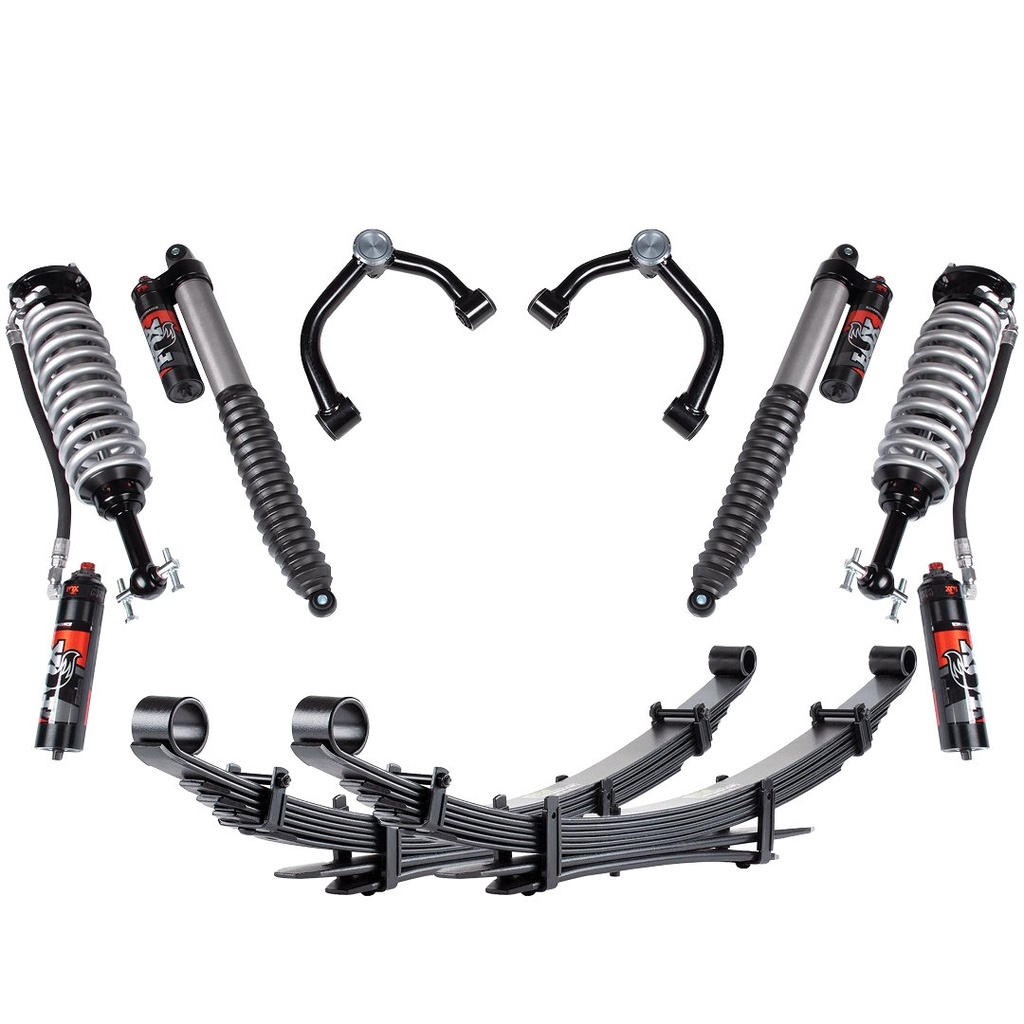

What's in the package
- Fox 2.5 Performance Elite DSC front (883-06-199) & rear (883-26-122)
- ORI 200 kg leaf packs
- BDS upper control arms
- Cat 6 indicators (SWB)
Approval & compliance
Federally approved SSM GVM + GCM re-rate (LS16); Pre-rego (federal) or Post-rego (state); Ford Australia-delivered F-150 XLT/Lariat/Platinum SWB & LWB only
Everything that goes into Stage 2
Why get it fitted by Project Overlander
Fitted in-house
Your package is installed by our own technicians at Smeaton Grange — the same team that builds our full American truck touring setups.
Engineering handled
We take care of the ORI approval paperwork, plates and certification, whether the truck is pre-registration or already on the road.
Build it once
Pair the upgrade with trays, canopies, long range tanks, awnings and 12V from the same workshop — one booking, one warranty contact.
Price is for the package supplied, fitted and engineered. Post-registration upgrades attract additional state engineering and registration fees. Some stages need load-rated wheels and tyres. Final specification is confirmed at quote, based on your vehicle's build and compliance plates. Offroad Industries (ORI) is an independent Australian brand; Project Overlander is an authorised installer.
