GVM 5550 kg (NB2) | GCM 12,695 kg
Stage 3: 3in BDS | Fox 2.5 | 5550 GVM
Stage 3 of Offroad Industries' GVM program for the RAM 2500 5th Gen (DJ) (2019–2024). “3in BDS | Fox 2.5 | 5550 GVM” lifts the truck 3in (BDS radius arm), clears 35in legal (35x12.5 R18/R20), and re-rates it to 5550 kg (NB2) GVM and 12,695 kg GCM — that's 1655 kg (+86.8%) of legal payload.
Who it suits: Owners wanting more lift with correct front geometry plus max payload.
Specifications
| Vehicle | RAM 2500 5th Gen (DJ) · 2019–2024 |
|---|---|
| Factory rating | 4,495 kg GVM (NB1) · 12,695 kg GCM · about 886 kg payload |
| Upgraded GVM | 5550 kg (NB2) |
| Upgraded GCM | 12,695 kg |
| Payload | 1655 kg (+86.8%) |
| Lift | 3in (BDS radius arm) |
| Tyres | 35in legal (35x12.5 R18/R20) |
| ORI part number | RAM-2500-5G-Stage3-GVM |

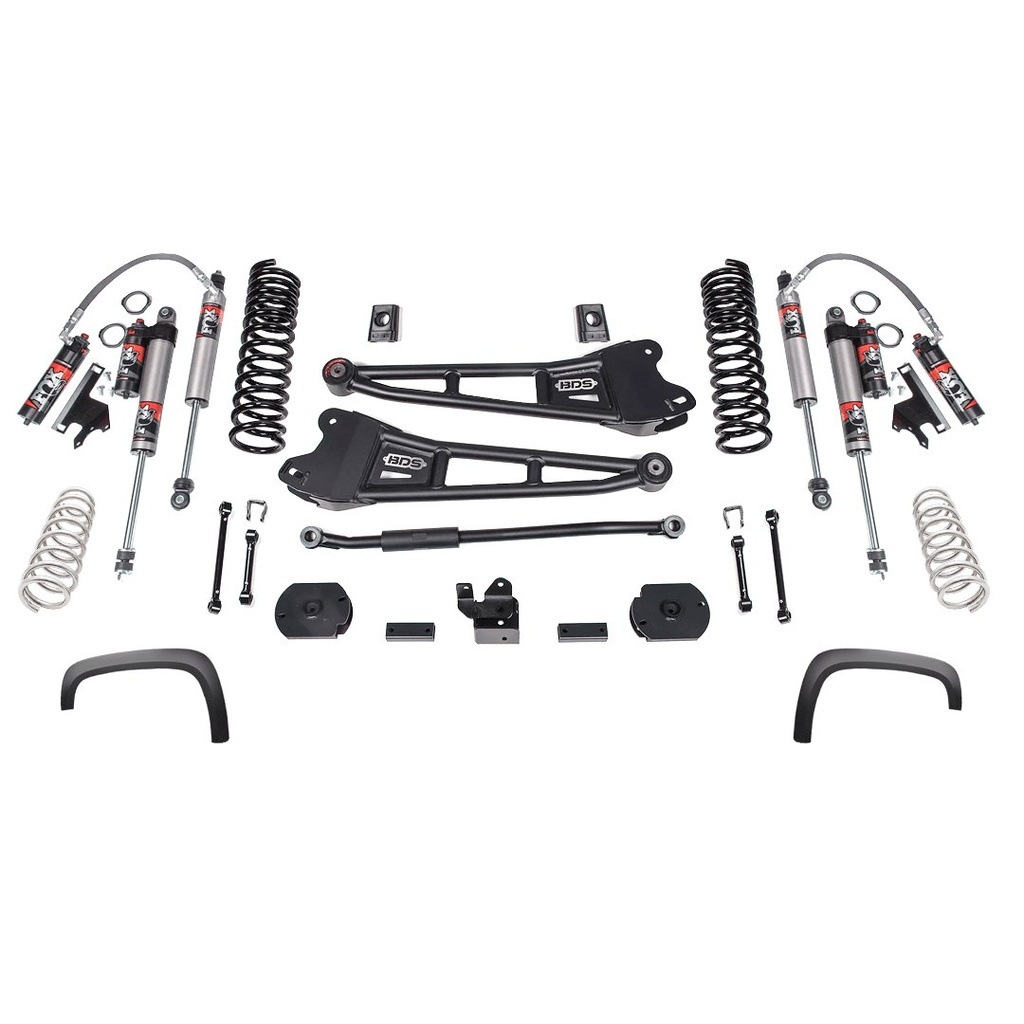

What's in the package
- BDS 3in radius arm lift kit (BDS1653FPE)
- Fox 2.5 Performance Elite reservoir shocks
- ORI load-rated coils front & rear
- Husky Extenda flares, colour coded
Approval & compliance
SSM federally approved Australia-wide, Pre and Post rego (VTA-064942); NB1 -> NB2 (truck licence); RAM Trucks Australia delivered/converted vehicles only
Everything that goes into Stage 3
Why get it fitted by Project Overlander
Fitted in-house
Your package is installed by our own technicians at Smeaton Grange — the same team that builds our full American truck touring setups.
Engineering handled
We take care of the ORI approval paperwork, plates and certification, whether the truck is pre-registration or already on the road.
Build it once
Pair the upgrade with trays, canopies, long range tanks, awnings and 12V from the same workshop — one booking, one warranty contact.
Price is for the package supplied, fitted and engineered. Post-registration upgrades attract additional state engineering and registration fees. Some stages need load-rated wheels and tyres. Final specification is confirmed at quote, based on your vehicle's build and compliance plates. Offroad Industries (ORI) is an independent Australian brand; Project Overlander is an authorised installer.
