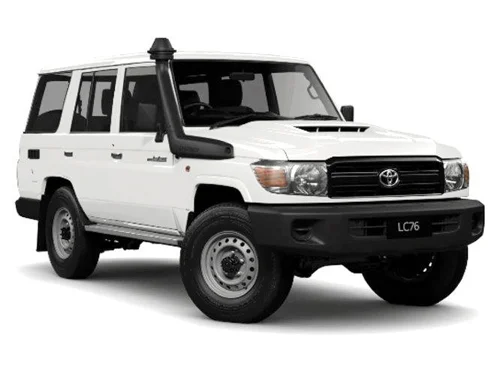

Dobinsons GVM Upgrade – Toyota LandCruiser 76 Series
GVM to 3,700 kg · Federally approved · Supplied & fitted at Smeaton Grange
More legal payload for your 76 Series wagon
The 76 Series wagon is a serious long-range tourer, and drawers, a fridge, long range tank and roof gear add up fast. Dobinsons takes the VDJ76 and GDJ76 (including J7 V8 and 4 cylinder models) to 3,700 kg GVM on factory wheels and tyres.
As an authorised Dobinsons GVM fitter, we replace the factory springs and shocks with a matched, federally approved Dobinsons package. You choose spring rates to suit your accessories and a shock to suit how you drive, and we fit it, update the compliance and send you on your way.
- New GVM: 3,700 kg – Includes J7 V8 and 4 cylinder models.
- Towing: GCM stays at the factory figure
- Approval: Pre-rego: paused by Dobinsons (ADR changes) · Post-rego: available*
Pricing
3,700 kg GVM · Prices include GST · Supplied & fitted · Choose your shock
*Further charges for state based engineering may apply. Spring rates are chosen at no extra cost to suit your accessories.
Specifications
| New GVM | 3,700 kg |
|---|---|
| Front axle limit | 1,540 kg |
| Rear axle limit | 2,300 kg |
| GCM | Unchanged from factory |
| Wheels & tyres | OEM wheels and tyres are compliant |
| Category | Changed to NB1 |
| Registration | Pre-rego: paused by Dobinsons (ADR changes) · Post-rego: available* |
Front coil spring options
- No load
- 45 mm lift – 40–70 kg
- 45 mm lift – 70–100 kg
Rear leaf spring options
- 50 mm lift – 450 kg constant load
Shock options
- Twin Tube Nitro-Gas
- IMS
- MRR
What's in the kit
- 2 x front coil springs
- 2 x front shock absorbers
- 2 x rear leaf springs
- 2 x rear shock absorbers
- 1 x rear shackle bush kit
- 4 x rear U-bolts
- 2 x rear shackles
- 2 x rear shackle pins
- 2 x Cat 6 side indicators (excluding J7 models)
Pre-rego or post-rego?
Pre-registration
Fitted before first registration under the federal approval. Dobinsons has currently paused pre-rego approval on 70 Series kits due to ADR changes, so new 70 Series are being done post-rego for now.
Post-registration
For vehicles already on the road. An approved signatory certifies the upgrade under NSW rules and your rego is updated. Further charges for state based engineering may apply, and the vehicle may need re-certifying if it moves interstate.
Why Project Overlander
Trusted GVM facility
We fit Dobinsons GVM upgrades in-house at our Smeaton Grange workshop – fitted by our own technicians, not sub-contracted.
Paperwork handled
We organise the compliance plate, certification and rego update, whether your vehicle is new or already on the road.
Build it once
Combine your GVM upgrade with trays, canopies, drawers, long range tanks and 12V from the same workshop, so the whole build is planned around your new payload.
76 Series wagon GVM FAQs
Can I get it fitted before rego?
Dobinsons has paused pre-registration approval on 70 Series kits due to ADR changes. Post-registration upgrades are still available, and further charges for state based engineering may apply.
What does the price include?
Prices include GST and cover the Dobinsons kit supplied and fitted by an authorised Dobinsons GVM fitter at our Smeaton Grange workshop. Further charges for state based engineering may apply, and load rated wheels and tyres are extra where a kit requires them.
How do I get started?
Send us an enquiry below with your vehicle, what you carry and whether it is registered. We will confirm the right kit and spring rates and book you in.
