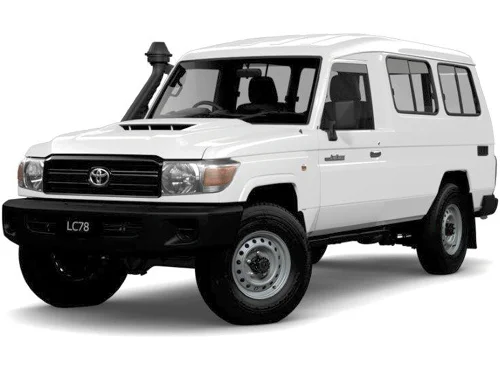

Dobinsons GVM Upgrade – Toyota LandCruiser 78 Series Troopy
GVM to 3,900 kg or 4,040 kg · Federally approved · Supplied & fitted at Smeaton Grange from $5,590 inc GST*
More legal payload for your Troopy
Troopy fit-outs are heavy by nature: drawers, kitchens, fridges, water, 12V systems and pop tops all count toward GVM. Dobinsons offers two kits for the VDJ78 and GDJ78: a 3,900 kg kit that keeps your factory wheels and tyres, and a 4,040 kg heavy duty kit for 2022-on Troopies running load rated rubber.
As an authorised Dobinsons GVM fitter, we replace the factory springs and shocks with a matched, federally approved Dobinsons package. You choose spring rates to suit your accessories and a shock to suit how you drive, and we fit it, update the compliance and send you on your way.
- 3,900 kg kit: 3,900 kg – Includes J7 V8 and 4 cylinder models.
- 4,040 kg heavy duty kit: 4,040 kg – J7 V8 and 4 cylinder models, 2022 on only. Requires a wheel and tyre change.
- Towing: GCM stays at the factory figure
- Approval: Pre-rego: paused by Dobinsons (ADR changes) · Post-rego: available*
3,900 kg kit – pricing
3,900 kg GVM · Prices include GST · Supplied & fitted · Choose your shock
*Further charges for state based engineering may apply. Spring rates are chosen at no extra cost to suit your accessories.
3,900 kg kit – specifications
| New GVM | 3,900 kg |
|---|---|
| Front axle limit | 1,540 kg |
| Rear axle limit | 2,360 kg |
| GCM | Unchanged from factory |
| Wheels & tyres | OEM wheels and tyres are compliant |
| Category | Changed to NB1 |
| Registration | Pre-rego: paused by Dobinsons (ADR changes) · Post-rego: available* |
Front coil spring options
- 45 mm lift – up to 40 kg
- 45 mm lift – 60–100 kg
Rear leaf spring options
- 50 mm lift – 500 kg constant load
- 50 mm lift – 800 kg constant load
Shock options

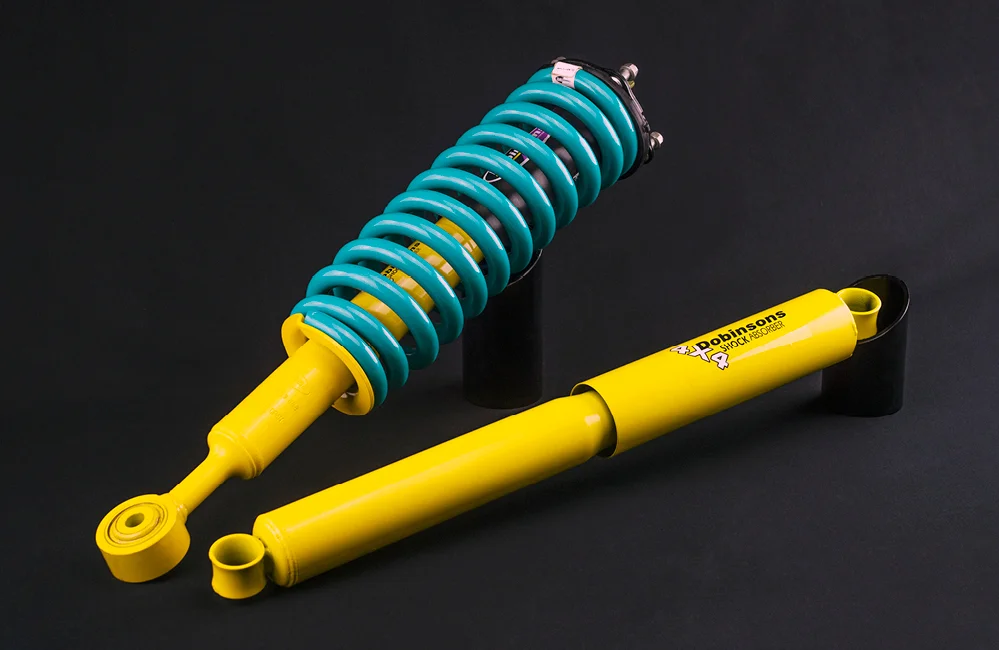

- Twin Tube Nitro-Gas

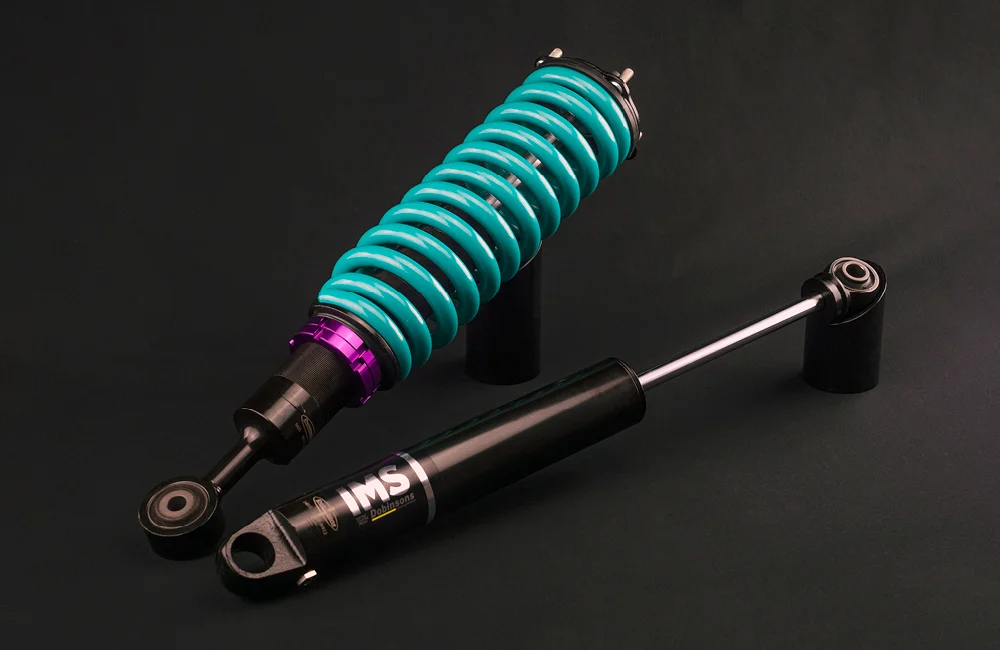

- IMS

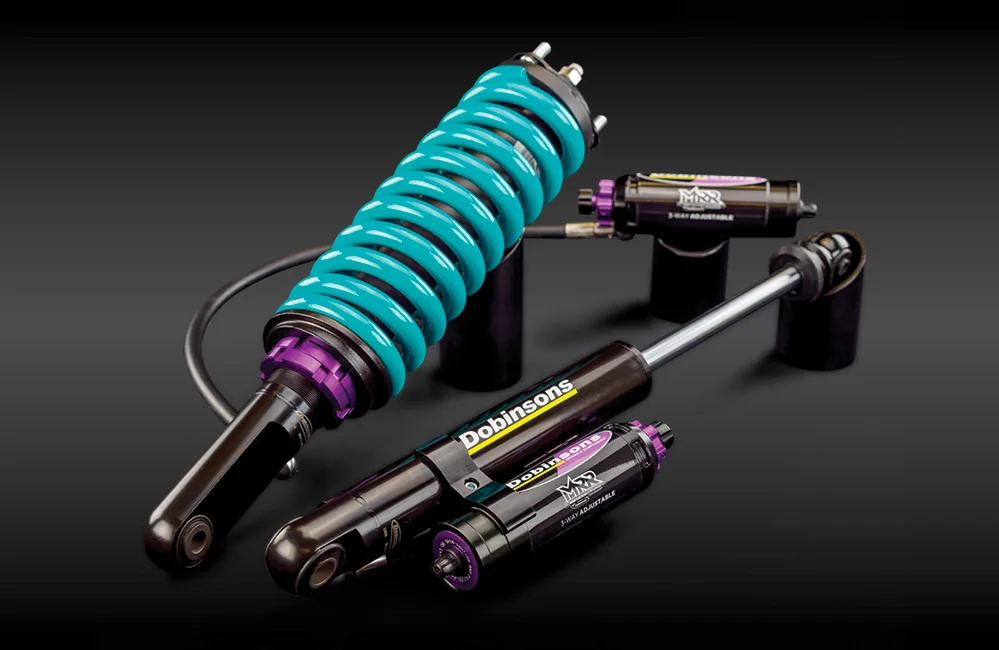

- MRR

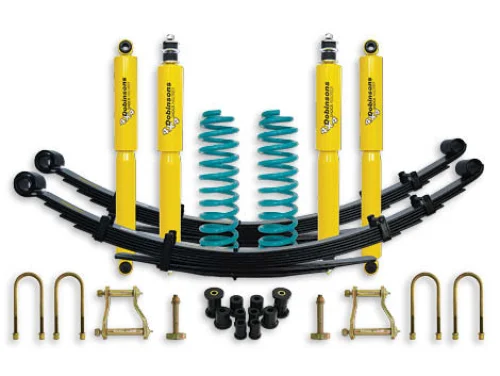

What's in the kit
- 2 x front coil springs
- 2 x front shock absorbers
- 2 x rear leaf springs
- 2 x rear shock absorbers
- 1 x front steering damper
- 2 x rear shackles
- 1 x rear shackle bush kit
- 4 x rear U-bolts
- 2 x rear shackle pins
- 1 x front sway bar extension
- 1 x front castor kit
- 1 x front ABS cable bracket
- 2 x Cat 6 side indicators (excluding J7 models)
4,040 kg heavy duty kit – pricing
4,040 kg GVM · Prices include GST · Supplied & fitted · Choose your shock
*Further charges for state based engineering may apply. Spring rates are chosen at no extra cost to suit your accessories.
4,040 kg heavy duty kit – specifications
| New GVM | 4,040 kg |
|---|---|
| Front axle limit | 1,540 kg |
| Rear axle limit | 2,500 kg |
| GCM | Unchanged from factory |
| Approved tyres | 265/70R16 121Q, 225/95R16C or 285/70R17 121Q |
| Approved wheels | 17 x 8.5J 0 offset or 17 x 9J -12 offset, minimum 1,250 kg load rating |
| Category | Changed to NB1 |
| Registration | Pre-rego: paused by Dobinsons (ADR changes) · Post-rego: available* |
Front coil spring options
- 45 mm lift – up to 40 kg
- 45 mm lift – 60–100 kg
Rear leaf spring options
- 50 mm lift – 800 kg constant load
Shock options
- IMS
- MRR
What's in the kit
- 2 x front coil springs
- 2 x front shock absorbers
- 2 x rear leaf springs
- 2 x rear shock absorbers
- 1 x front steering damper
- 2 x rear shackles
- 1 x rear shackle bush kit
- 4 x rear U-bolts
- 2 x rear shackle pins
- 1 x front sway bar extension
- 1 x front castor kit
- 1 x front ABS cable bracket
Note: Load rated wheels and tyres must be fitted before the upgrade can be certified. We can supply them as part of your quote.
Pre-rego or post-rego?
Pre-registration
Fitted before first registration under the federal approval. Dobinsons has currently paused pre-rego approval on 70 Series kits due to ADR changes, so new 70 Series are being done post-rego for now.
Post-registration
For vehicles already on the road. An approved signatory certifies the upgrade under NSW rules and your rego is updated. Further charges for state based engineering may apply, and the vehicle may need re-certifying if it moves interstate.
Why Project Overlander
Trusted GVM facility
We fit Dobinsons, JMACX and Offroad Industries GVM upgrades in-house at our Smeaton Grange workshop, so you get the kit that suits your vehicle – fitted by our own technicians, not sub-contracted.
Paperwork handled
We organise the compliance plate, certification and rego update, whether your vehicle is new or already on the road.
Build it once
Combine your GVM upgrade with trays, canopies, drawers, long range tanks and 12V from the same workshop, so the whole build is planned around your new payload.
Troopy GVM FAQs
Which Troopy kit should I choose?
If your fit-out and gear come in under 3,900 kg, the 3,900 kg kit keeps your factory wheels and tyres. Heavier campervan and expedition builds suit the 4,040 kg kit, which needs approved load rated wheels and tyres. We weigh your build plan and recommend one.
Can I get it fitted before rego?
Dobinsons has paused pre-registration approval on 70 Series kits due to ADR changes. Post-registration upgrades are still available, and further charges for state based engineering may apply.
What does the price include?
Prices include GST and cover the Dobinsons kit supplied and fitted by an authorised Dobinsons GVM fitter at our Smeaton Grange workshop. Further charges for state based engineering may apply, and load rated wheels and tyres are extra where a kit requires them.
How do I get started?
Send us an enquiry below with your vehicle, what you carry and whether it is registered. We will confirm the right kit and spring rates and book you in.
