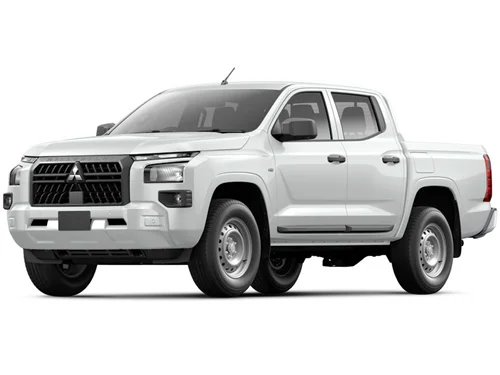

Dobinsons GVM Upgrade – Mitsubishi Triton MV
GVM to 3,600 kg · Federally approved · Supplied & fitted at Smeaton Grange
More legal payload for your Triton
The new MV Triton is a capable, comfortable ute, and like every dual cab its payload gets tight once it is set up for work or touring. Dobinsons lifts the Triton MV 4x4 to 3,600 kg GVM with OEM wheels and tyres staying compliant.
As an authorised Dobinsons GVM fitter, we replace the factory springs and shocks with a matched, federally approved Dobinsons package. You choose spring rates to suit your accessories and a shock to suit how you drive, and we fit it, update the compliance and send you on your way.
- New GVM: 3,600 kg – 4x4 variants only.
- Towing: GCM stays at the factory figure
- Approval: Pre-rego and post-rego*
Pricing
3,600 kg GVM · Prices include GST · Supplied & fitted · Choose your shock
*Further charges for state based engineering may apply. Spring rates are chosen at no extra cost to suit your accessories.
Specifications
| New GVM | 3,600 kg |
|---|---|
| Front axle limit | 1,500 kg |
| Rear axle limit | 2,100 kg |
| GCM | Unchanged from factory |
| Wheels & tyres | OEM wheels and tyres are compliant |
| Category | Changed to NB1 |
| Indicators | Requires Cat 6 indicators |
| Registration | Pre-rego and post-rego* |
Front coil spring options
- 45 mm lift – no load
- 45 mm lift – 40–60 kg
- 45 mm lift – 80–100 kg
Rear leaf spring options
- 30 mm lift – 200–250 kg constant load
- 30 mm lift – 400–500 kg constant load
Shock options
- Twin Tube Nitro-Gas
- IMS
- MRR
What's in the kit
- 2 x front coil springs
- 2 x front shock absorbers
- 2 x rear leaf springs
- 2 x rear shock absorbers
- 2 x rear shackle kits
- 1 x rear shackle bush kit
- 4 x rear U-bolt kits
- 2 x rear shackle pins
Note: Excludes 4x2 variants.
Pre-rego or post-rego?
Pre-registration
Fitted before first registration under the federal approval. Your vehicle is recognised Australia-wide for life, and it is usually the simplest and cheapest path if you are buying new.
Post-registration
For vehicles already on the road. An approved signatory certifies the upgrade under NSW rules and your rego is updated. Further charges for state based engineering may apply, and the vehicle may need re-certifying if it moves interstate.
Why Project Overlander
Trusted GVM facility
We fit Dobinsons GVM upgrades in-house at our Smeaton Grange workshop – fitted by our own technicians, not sub-contracted.
Paperwork handled
We organise the compliance plate, certification and rego update, whether your vehicle is new or already on the road.
Build it once
Combine your GVM upgrade with trays, canopies, drawers, long range tanks and 12V from the same workshop, so the whole build is planned around your new payload.
Triton GVM FAQs
Does it suit older Tritons (MQ/MR)?
No, this kit is approved for the MV Triton 4x4 only.
Will I need Cat 6 indicators?
Yes, the upgrade requires Cat 6 indicators. We fit them as part of the job and include them in your quote.
What does the price include?
Prices include GST and cover the Dobinsons kit supplied and fitted by an authorised Dobinsons GVM fitter at our Smeaton Grange workshop. Further charges for state based engineering may apply, and load rated wheels and tyres are extra where a kit requires them.
How do I get started?
Send us an enquiry below with your vehicle, what you carry and whether it is registered. We will confirm the right kit and spring rates and book you in.
