Trusted Dobinsons GVM Facility

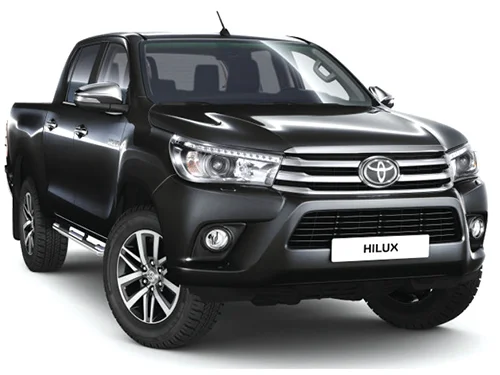

Dobinsons GVM Upgrade – Toyota HiLux 8th Gen
GVM up to 3,520 kg · Federally approved · Supplied & fitted at Smeaton Grange
More legal payload for your HiLux
The 8th generation HiLux is still everywhere on Aussie worksites and touring tracks. Dobinsons offers up to 3,520 kg GVM on 10/2024-on 4x4 models and 3,500 kg on 2015 to 10/2024 models, with tailshaft spacers and a headlight adjuster included.
As an authorised Dobinsons GVM fitter, we replace the factory springs and shocks with a matched, federally approved Dobinsons package. You choose spring rates to suit your accessories and a shock to suit how you drive, and we fit it, update the compliance and send you on your way.
- New GVM: Up to 3,520 kg – 3,520 kg for 10/2024-on models. 2015 to 10/2024 models upgrade to 3,500 kg.
- Towing: GCM stays at the factory figure
- Approval: Pre-rego and post-rego* (10/2024 on)
Pricing
Up to 3,520 kg GVM · Prices include GST · Supplied & fitted · Choose your shock
*Further charges for state based engineering may apply. Spring rates are chosen at no extra cost to suit your accessories.
Specifications
| New GVM | 3,520 kg (10/2024 on) / 3,500 kg (2015 – 10/2024) |
|---|---|
| Front axle limit | 1,520 kg |
| Rear axle limit | 2,000 kg |
| GCM | Unchanged from factory |
| Wheels & tyres | OEM wheels and tyres are compliant |
| Category | Changed to NB1 |
| Indicators | Requires Cat 6 indicators |
| Registration | Pre-rego and post-rego* (10/2024 on) |
Front coil spring options
- 45 mm lift – no load
- 45 mm lift – 70–90 kg
- 45 mm lift – 100–120 kg
Rear leaf spring options
- 45 mm lift – 300–350 kg constant load (touring option)
- 45 mm lift – 580 kg constant load
Shock options
- Twin Tube Nitro-Gas
- IMS
- MRR
What's in the kit
- 2 x front coil springs
- 2 x front shock absorbers
- 2 x rear leaf springs
- 2 x rear shock absorbers
- 2 x rear shackles
- 1 x rear shackle bush kit
- 4 x rear U-bolts
- 2 x rear shackle pins
- 2 x tailshaft spacer kits
- 1 x rear headlight adjuster
Note: Excludes 4x2 variants.
Pre-rego or post-rego?
Pre-registration
Fitted before first registration under the federal approval. Your vehicle is recognised Australia-wide for life, and it is usually the simplest and cheapest path if you are buying new.
Post-registration
For vehicles already on the road. An approved signatory certifies the upgrade under NSW rules and your rego is updated. Further charges for state based engineering may apply, and the vehicle may need re-certifying if it moves interstate.
Why Project Overlander
Trusted GVM facility
We fit Dobinsons GVM upgrades in-house at our Smeaton Grange workshop – fitted by our own technicians, not sub-contracted.
Paperwork handled
We organise the compliance plate, certification and rego update, whether your vehicle is new or already on the road.
Build it once
Combine your GVM upgrade with trays, canopies, drawers, long range tanks and 12V from the same workshop, so the whole build is planned around your new payload.
HiLux GVM FAQs
My HiLux is a 2019 model. What can I get?
2015 to 10/2024 HiLux 4x4s upgrade to 3,500 kg. Models built from 10/2024 get the full 3,520 kg rating.
Can it be done pre-registration?
Dobinsons lists pre- and post-registration approval for 10/2024-on models. Older vehicles are already registered, so they are done post-rego, where further charges for state based engineering may apply.
What does the price include?
Prices include GST and cover the Dobinsons kit supplied and fitted by an authorised Dobinsons GVM fitter at our Smeaton Grange workshop. Further charges for state based engineering may apply, and load rated wheels and tyres are extra where a kit requires them.
How do I get started?
Send us an enquiry below with your vehicle, what you carry and whether it is registered. We will confirm the right kit and spring rates and book you in.
Get a quote – Toyota HiLux 8th Gen GVM
Tell us about your vehicle and what you carry. We will confirm the right kit and send you a quote.
