GVM 4250 kg | GCM 8750 kg LTZ / 8450 kg ZR2
Stage 5: The "No Compromise" Build
Stage 5 of Offroad Industries' GVM program for the Chevrolet Silverado 1500 (LTZ, Trail Boss & ZR2) (2019–2026). “The "No Compromise" Build” lifts the truck 3.5in, clears 295/70R18 or 35x12.5R18 (load-rated wheels required), and re-rates it to 4250 kg GVM and 8750 kg LTZ / 8450 kg ZR2 GCM — that's approx. 1672 kg (+121%) of legal payload.
Who it suits: Enthusiasts wanting maximum legal payload with top-tier Fox 3.0 bypass damping.
Specifications
| Vehicle | Chevrolet Silverado 1500 (LTZ, Trail Boss & ZR2) · 2019–2026 |
|---|---|
| Factory rating | 3,300 kg GVM · 7,160 kg GCM · about 757 kg payload |
| Upgraded GVM | 4250 kg |
| Upgraded GCM | 8750 kg LTZ / 8450 kg ZR2 |
| Payload | approx. 1672 kg (+121%) |
| Lift | 3.5in |
| Tyres | 295/70R18 or 35x12.5R18 (load-rated wheels required) |
| ORI part number | CHV-1500-Stage5-GVM-200 |

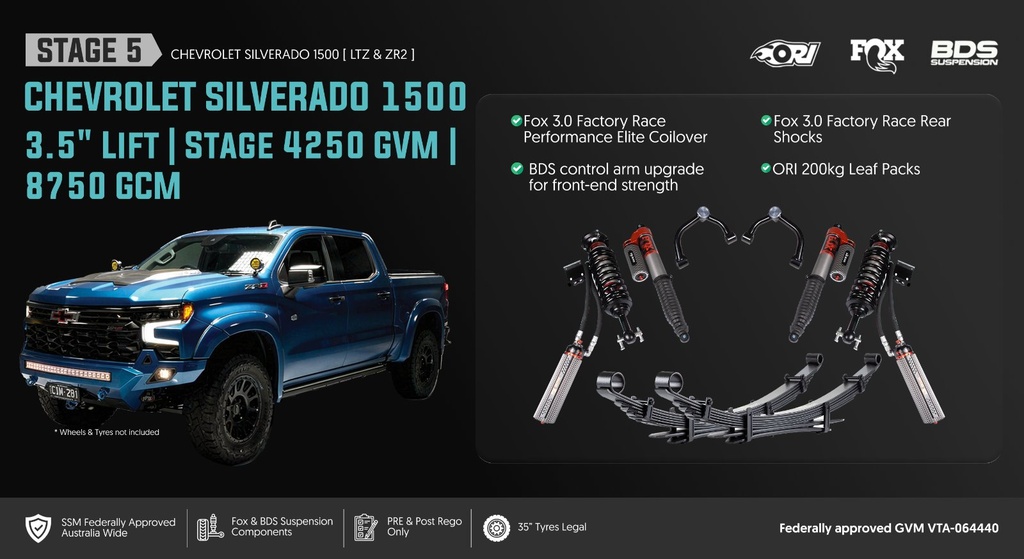

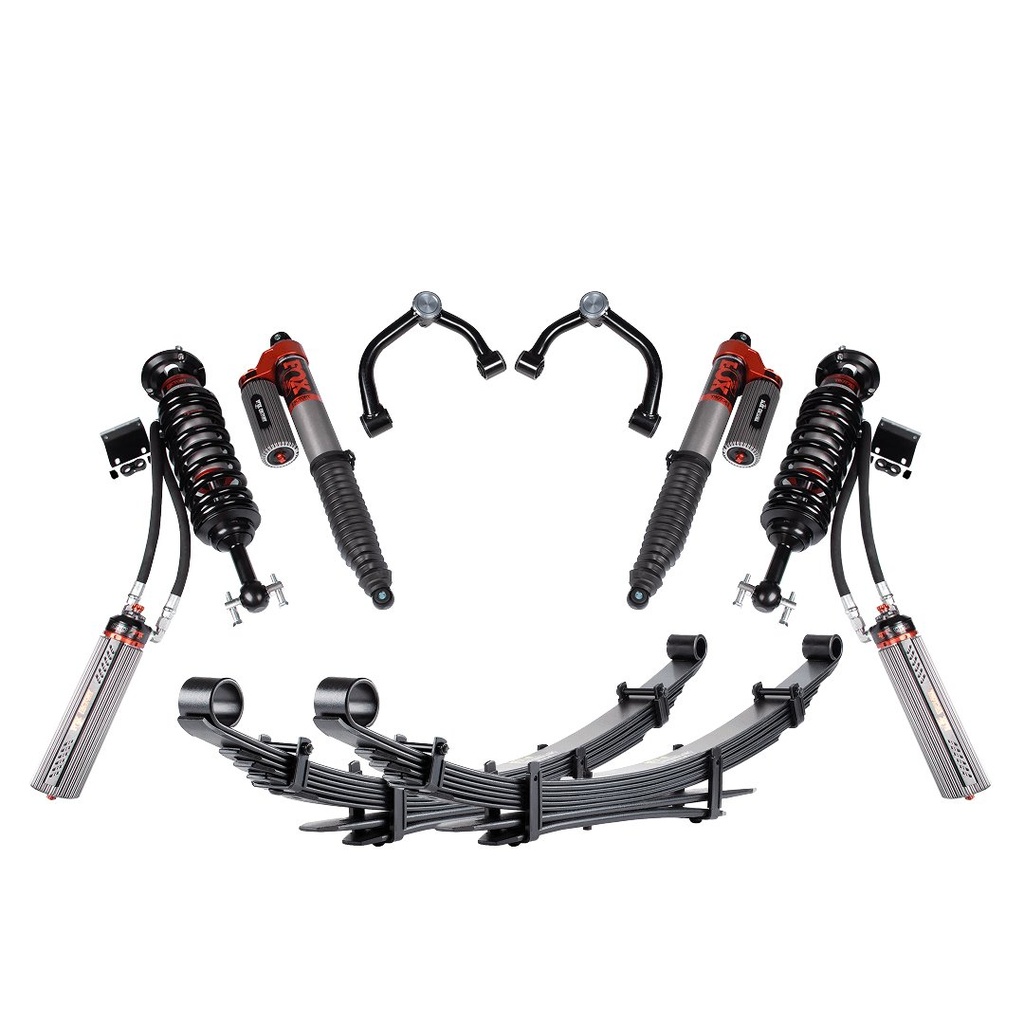

What's in the package
- Fox 3.0 Internal Bypass Factory Race Series front (883-06-175) & rear (883-26-105)
- ORI 200/400 kg leaf packs (shop variants 200/400/600)
- BDS upper control arms (BDS121260)
Approval & compliance
Federally approved SSM GVM + GCM re-rate (LS16 GCM code); available Pre-rego (federal) or Post-rego (state, extra local fees)
Everything that goes into Stage 5
Why get it fitted by Project Overlander
Fitted in-house
Your package is installed by our own technicians at Smeaton Grange — the same team that builds our full American truck touring setups.
Engineering handled
We take care of the ORI approval paperwork, plates and certification, whether the truck is pre-registration or already on the road.
Build it once
Pair the upgrade with trays, canopies, long range tanks, awnings and 12V from the same workshop — one booking, one warranty contact.
Price is for the package supplied, fitted and engineered. Post-registration upgrades attract additional state engineering and registration fees. Some stages need load-rated wheels and tyres. Final specification is confirmed at quote, based on your vehicle's build and compliance plates. Offroad Industries (ORI) is an independent Australian brand; Project Overlander is an authorised installer.
