GVM 3650 kg | GCM 8150 kg (BTC 4500 kg)
Stage 1 LTZ: 4in BDS Lift | 3650 GVM | 35in Tyres Legal
Stage 1 LTZ of Offroad Industries' SSM NB1 lift program for the Chevrolet Silverado 1500 (LTZ, Trail Boss & ZR2) (2019–2026). It gives the truck a 4in lift and clearance for 35x12.5R18 / 35x12.5R20 (load-rated 1100 kg wheels, 121Q; 20x9 +12/0 or 18x9 -12), while keeping the vehicle at 3650 kg GVM — so it stays in the NB1 light-vehicle category and can still be driven on a standard car licence.
Who it suits: LTZ owners wanting a lifted stance on 35s with no towing loss, built pre-rego.
Specifications
| Vehicle | Chevrolet Silverado 1500 (LTZ, Trail Boss & ZR2) · 2019–2026 |
|---|---|
| Factory rating | 3,300 kg GVM · 7,160 kg GCM · about 757 kg payload |
| Upgraded GVM | 3650 kg |
| Upgraded GCM | 8150 kg (BTC 4500 kg) |
| Payload | 929 kg |
| Lift | 4in |
| Tyres | 35x12.5R18 / 35x12.5R20 (load-rated 1100 kg wheels, 121Q; 20x9 +12/0 or 18x9 -12) |
| ORI part number | CHV-NB1-Stage1-LTZ |
What's in the package

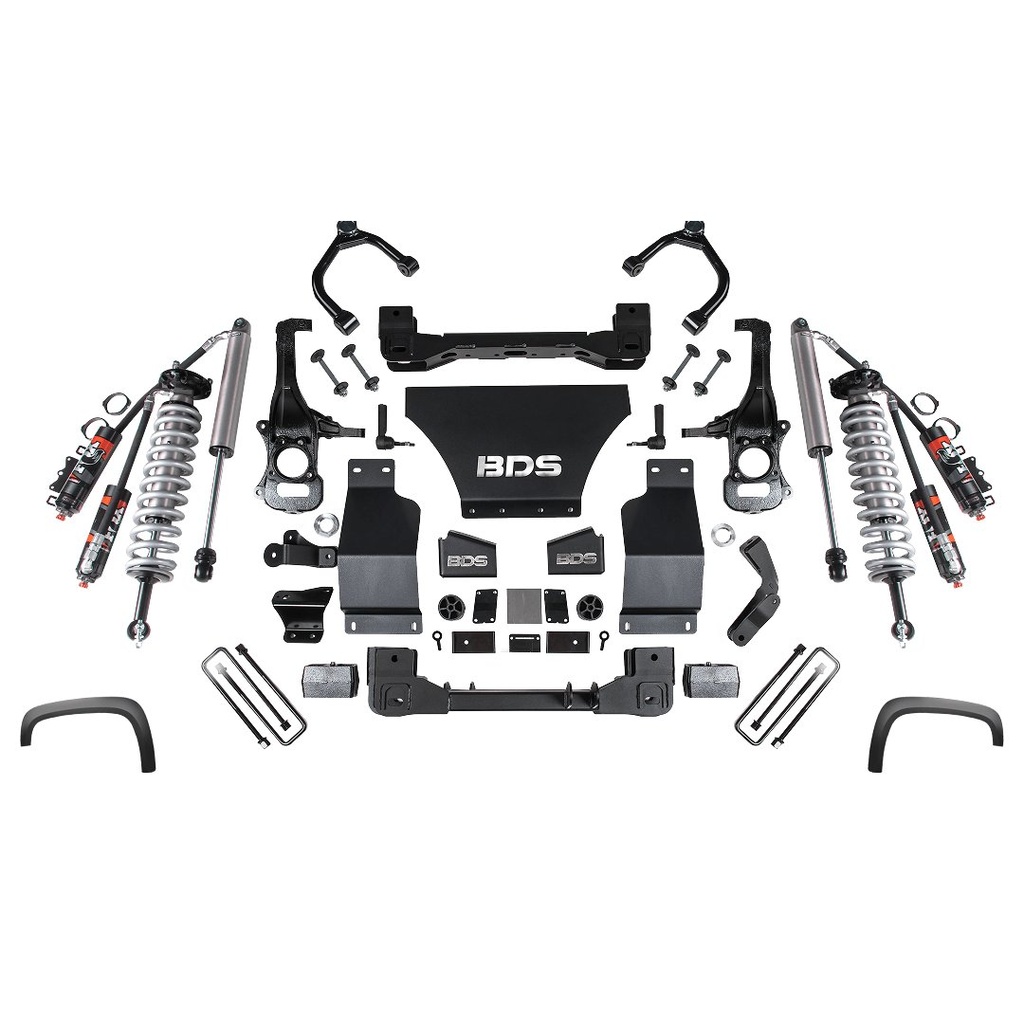

- BDS 4in kit with Fox 2.5 Performance Elite (BDS1757FPE)
- BDS control arms (BDS121260)
- Husky/Bushwacker Extenda flares (2804994)
- ORI rear mud flaps
- Speedo correction tool (90050)
- Optional BDS Recoil traction bars (BDS2303)
Approval & compliance
SSM federally approved Australia-wide, PRE-rego only (VTA-064440); stays NB1 (car licence)
Everything that goes into Stage 1 LTZ
Why get it fitted by Project Overlander
Fitted in-house
Your package is installed by our own technicians at Smeaton Grange — the same team that builds our full American truck touring setups.
Engineering handled
We take care of the ORI approval paperwork, plates and certification, whether the truck is pre-registration or already on the road.
Build it once
Pair the upgrade with trays, canopies, long range tanks, awnings and 12V from the same workshop — one booking, one warranty contact.
Price is for the package supplied, fitted and engineered. Post-registration upgrades attract additional state engineering and registration fees. Some stages need load-rated wheels and tyres. Final specification is confirmed at quote, based on your vehicle's build and compliance plates. Offroad Industries (ORI) is an independent Australian brand; Project Overlander is an authorised installer.
