GVM 3700 kg | GCM 8200 kg
Stage 6: The "Monster" Build (6-Inch Lift)
Stage 6 of Offroad Industries' GVM program for the Ford F-150 (XLT, Lariat & Platinum) (2021–2026). “The "Monster" Build (6-Inch Lift)” lifts the truck 6in, clears 37x13.5R20 (must be run; 18in rims hit new-gen tie rods), and re-rates it to 3700 kg GVM and 8200 kg GCM — that's approx. 1209-1219 kg of legal payload.
Who it suits: Show-stopping 6in F-150 on 37s that stays fully legal and insurable.
Specifications
| Vehicle | Ford F-150 (XLT, Lariat & Platinum) · 2021–2026 |
|---|---|
| Factory rating | 3,220 kg GVM · 7,720 kg GCM · about 769 kg payload |
| Upgraded GVM | 3700 kg |
| Upgraded GCM | 8200 kg |
| Payload | approx. 1209-1219 kg |
| Lift | 6in |
| Tyres | 37x13.5R20 (must be run; 18in rims hit new-gen tie rods) |
| ORI part number | FRD-F150-Stage6-GVM |

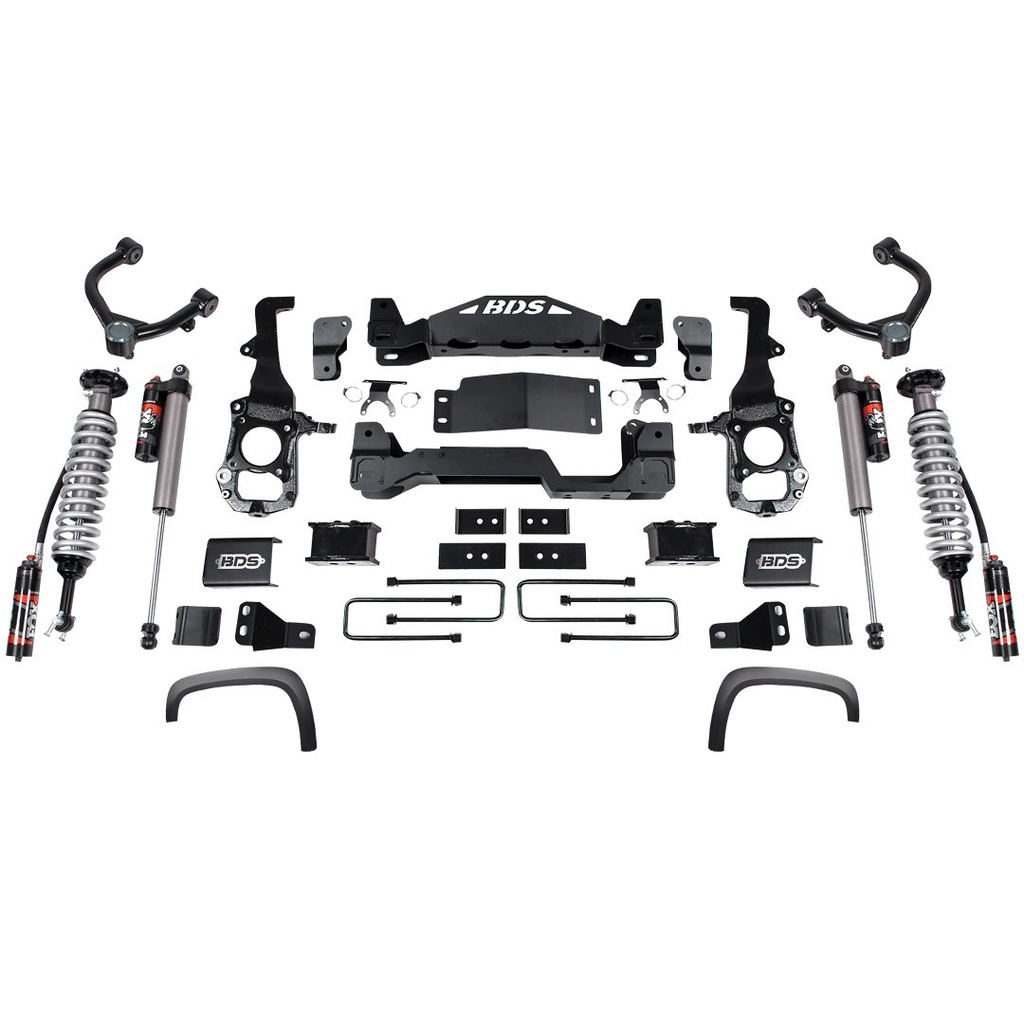

What's in the package
- BDS 6in lift kit with Fox 2.5 Performance Elite (BDS1585FPE)
- ORI 200 kg leaf packs
- BDS upper control arms
- Husky Extenda flares
- ORI mud flaps & brackets
Approval & compliance
Federally approved SSM GVM + GCM re-rate (LS16); Pre-rego only; Ford Australia-delivered F-150 XLT/Lariat/Platinum SWB & LWB only
Everything that goes into Stage 6
Why get it fitted by Project Overlander
Fitted in-house
Your package is installed by our own technicians at Smeaton Grange — the same team that builds our full American truck touring setups.
Engineering handled
We take care of the ORI approval paperwork, plates and certification, whether the truck is pre-registration or already on the road.
Build it once
Pair the upgrade with trays, canopies, long range tanks, awnings and 12V from the same workshop — one booking, one warranty contact.
Price is for the package supplied, fitted and engineered. Post-registration upgrades attract additional state engineering and registration fees. Some stages need load-rated wheels and tyres. Final specification is confirmed at quote, based on your vehicle's build and compliance plates. Offroad Industries (ORI) is an independent Australian brand; Project Overlander is an authorised installer.
