COMING SOON
RAM 2500 6th Gen packages are awaiting final federal approval (expected late 2026). Enquire now to reserve a build slot.
GVM 5890 kg (NB2) | GCM 12,750 kg
Stage 6: The Six Inch Build - Top of the Range
Stage 6 of Offroad Industries' GVM program for the RAM 2500 6th Gen (2025+). “The Six Inch Build - Top of the Range” lifts the truck 6in, clears 40x13.5 R17 (load-rated wheels + 1650 kg tyre rating required; offsets +12/0/-11), and re-rates it to 5890 kg (NB2) GVM and 12,750 kg GCM — that's 2060 kg of legal payload.
Who it suits: The most heavily built 6th Gen rigs wanting 40in tyres, fully engineered.
Note: ORI expects federal approval for the 6th Gen packages shortly. Talk to us now to lock in a build slot.
Specifications
| Vehicle | RAM 2500 6th Gen · 2025+ |
|---|---|
| Factory rating | 4,495 kg GVM (NB1) · 12,750 kg GCM · about 886 kg payload |
| Upgraded GVM | 5890 kg (NB2) |
| Upgraded GCM | 12,750 kg |
| Payload | 2060 kg |
| Lift | 6in |
| Tyres | 40x13.5 R17 (load-rated wheels + 1650 kg tyre rating required; offsets +12/0/-11) |
| ORI part number | RAM-2500-6G-Stage6-GVM |

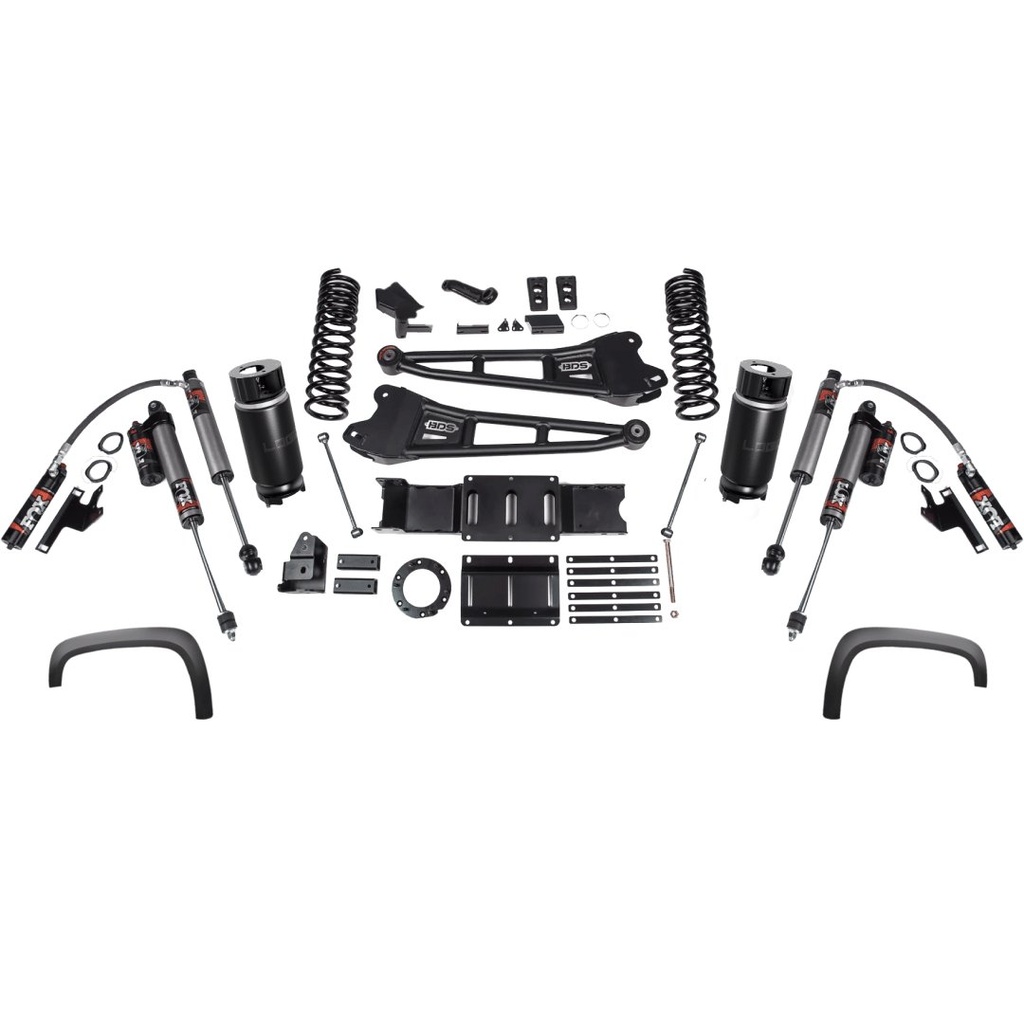

What's in the package
- BDS 6in radius arm kit (BDS2135FPE)
- Logic IQ air bag coil delete
- AEV HighMark fender flares (40408003AC)
- ORI mud flap brackets
Approval & compliance
ORI states packages are going through federal (SSM) approval, targeted September 2026; Pre-Rego (federal) and Post-Rego (state) intended; RAM Australia-delivered vehicles only; NB1 -> NB2
Everything that goes into Stage 6
Why get it fitted by Project Overlander
Fitted in-house
Your package is installed by our own technicians at Smeaton Grange — the same team that builds our full American truck touring setups.
Engineering handled
We take care of the ORI approval paperwork, plates and certification, whether the truck is pre-registration or already on the road.
Build it once
Pair the upgrade with trays, canopies, long range tanks, awnings and 12V from the same workshop — one booking, one warranty contact.
Price is for the package supplied, fitted and engineered. Post-registration upgrades attract additional state engineering and registration fees. Some stages need load-rated wheels and tyres. Final specification is confirmed at quote, based on your vehicle's build and compliance plates. Offroad Industries (ORI) is an independent Australian brand; Project Overlander is an authorised installer.
